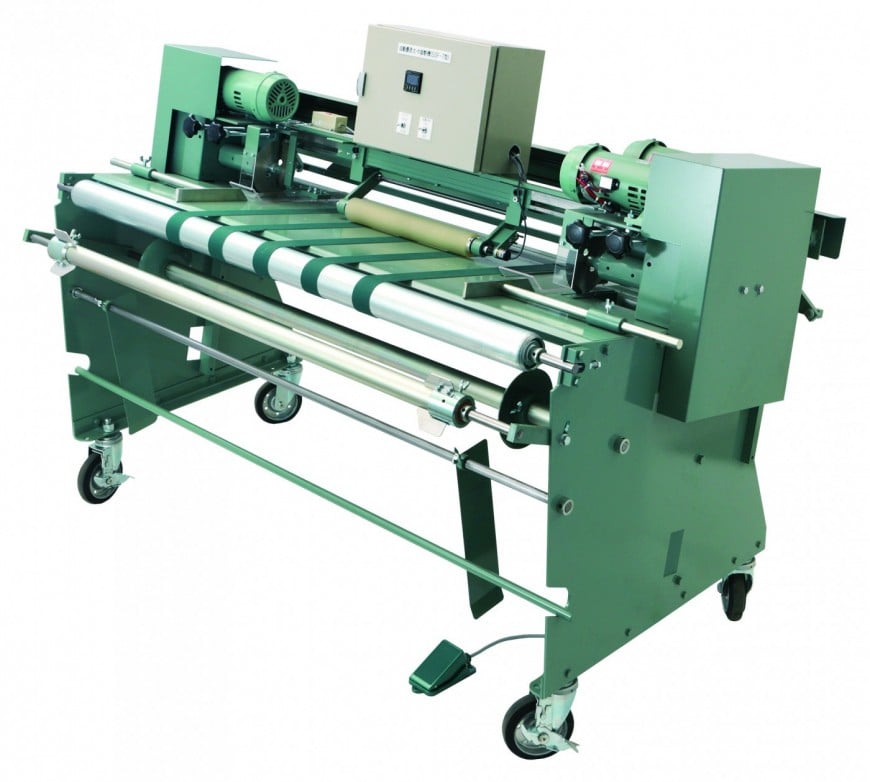

Automatic tatami facing width, length cutting machine SC type
■Summary
Labor saving of tatami facing width, the length cutting processing
With length dimensions cutting function
■Characteristic
●I can cut only the necessary number of sheets if I set cutting dimensions and the number of sheets with an operation screen.
●By the adoption of the top and bottom two pieces blade, the durability of the knife, the cutting of the chemical table are outstanding, too.
●Driving, a stop and the operation are easy with a foot switch if they set dimensions and the number of sheets to an operation screen.
●The width cutting is possible from 2 shakus of 5 sun to 3 shakus 6 sun from 2 shakus.
●The width dimensions are easily adjustable at a scale.
●By the adoption of the top and bottom two pieces blade, the durability of the knife, the cutting of the chemical table are outstanding, too.
●Driving, a stop and the operation are easy with a foot switch if they set dimensions and the number of sheets to an operation screen.
●The width cutting is possible from 2 shakus of 5 sun to 3 shakus 6 sun from 2 shakus.
●The width dimensions are easily adjustable at a scale.
■Specifications
| Full length | 1,700mm (6 sun of 5 shakus) |
| Width | 1,000mm (3 sun of 3 shakus) |
| Height | 1,300mm (3 sun of 4 shakus) |
| Work top height | 940mm (1 sun of 3 shakus) |
| Motor | With 200W brakes for the cutting (two) |
| With 200W brakes for the forwarding (nothing) | |
| Necessary power supply | Single phase 100V |
| Cutting width | 6 sun of 2 shaku 5 sun - 3 shakus |
| Rating power consumption | 0.75kW |
