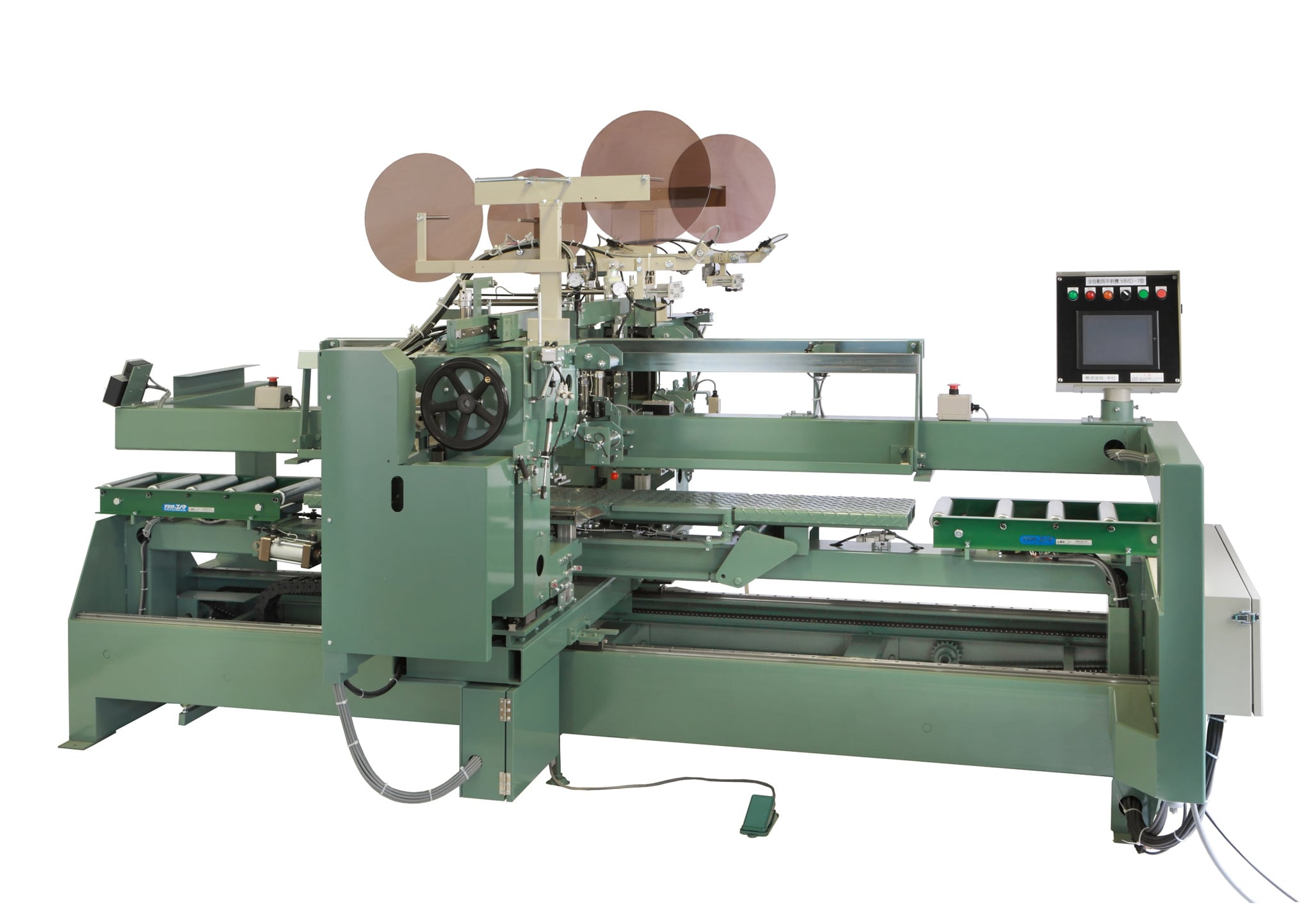

All both automatic flat splinters machine (sewing machine movement type) FDW-2A type
■Summary
I sew it at commission, the one half of the front of the kimono lapped under the other same time, and habit collecting perfection is automatic. Small space type!
A table spare; is convenient inside out; imitate it, and is with a device
Tip so cutting method
Tip so cutting method
<one thread ring sewing>
■Characteristic
●A relationship width change is very easy. (I can change it for - 1 sun four minutes for five minutes)
●The relations of a ruler and the knife do not change even if they change relationship width.
●As I cut it with an upper standard, the relationship width does not change even if the thickness of the floor changes.
●As both table cutter blade, floor cutter blades can go up and down, the setting in the wild last joke is modifiable only by screen operation table spare flip.
●A floor cutting angle is changeable to five times and 10 degrees.
●The rimless tatami is sectile on a habit dimensions street, too.
●The driving only for one side is easy, too.
●As for the table ruler, the height adjustment is unnecessary regardless of floor thickness.
●The relations of a ruler and the knife do not change even if they change relationship width.
●As I cut it with an upper standard, the relationship width does not change even if the thickness of the floor changes.
●As both table cutter blade, floor cutter blades can go up and down, the setting in the wild last joke is modifiable only by screen operation table spare flip.
●A floor cutting angle is changeable to five times and 10 degrees.
●The rimless tatami is sectile on a habit dimensions street, too.
●The driving only for one side is easy, too.
●As for the table ruler, the height adjustment is unnecessary regardless of floor thickness.
■Specifications
| Full length | 3,750mm (4 sun of 12 shakus) |
| Width | 2,150mm (1 sun of 7 shakus) |
| Height | 1,950mm (4 sun of 6 shakus) |
| Tatami mat stand height | 820mm (7 sun of 2 shakus) |
| Motor | With 200W brakes for the sewing machine (two) |
| 400W (nothing) for the forwarding | |
| 0.75kW (nothing) / 1.5kW (nothing) for the cutting | |
| 90W (two) for the table cutting | |
| 60W (nothing) for the habit collecting | |
| Necessary power supply | Three aspect 200V |
| Rating power consumption | 4.2kW |
| I can sew it and am within an automatic range | Length of the tatami mat 2 shaku 4 sun - 6 shaku 7 sun five minutes |
| Width 2 shaku 4 sun - 3 shaku 2 sun five minutes | |
| Thickness 10mm - 60mm | |
| Automatic habit collecting range | Per a Mayor of floor 3 shaku until four minutes |
| Sewing method | One thread ring sewing |
| Sewing interval | 10mm - 30mm (no stage) |
| Compressor | More than 750W (option) |
| Dust collector | 2.2kW (option) |
