News cut R-6

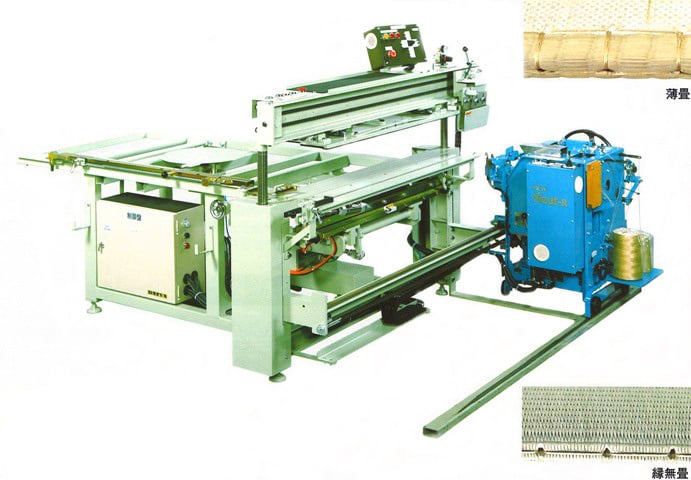

News cut R-6 doorcase sewing machine << arc needle, ladder sewing >>
The latest plane which regarded productivity as the saving of labor until doorcase cutting, table tension, doorcase sewing.
●A kind design of comfort simple by air drive as for the operation!
●The finish, the workability of a thin tatami mat, the rimless tatami improve remarkably, too!
●The finish, the workability of a thin tatami mat, the rimless tatami improve remarkably, too!
Operation panel
Relationship no table fold music machine
Air drive
Operation panel with monitor lamp
●As an assembly operation, the trouble are displayed by a monitor lamp, I am reliable at the time of emergency. I can easily use anyone.
I am equipped with a relationship no table fold music machine (option)
●By attaching a music machine to the large tatami mat stand excellent at workability in a relationship no table occasion; as for the work of the rimless tatami easily.
I cannot equip note) combination form R-6B.
I cannot equip note) combination form R-6B.
The floor stand is operated simply by air drive
●The operation of the floor stand of a zipper, the table tension, turn board of putting in and out, the tatami facing of the floor strengthening, presser bar, table tension machine
All the top and bottom air drive.
Automatic driving
●With one lever switch, anyone can operate it happily.
A fine adjustment allows tension of hyochoki
●A fine adjustment was enabled, and the tension of the table tension machine was easy to use at all it, and it became convenient.
Thin tatami mat correspondence
●I can change a needle position by standard tatami mat, thin tatami mat and steering wheel operation and it is easy to do thin tatami mat work very much and is finished beautifully.
It is free to do an automatic hand-operated change
●I am sewing it, and changes from manual operation, manual operation to own motion are free from own motion.
The disassembly of the music collecting ruler is free
●As freedom can remove "Omagari and the long simple melody" of the floor stand, I change the face,
I can perform work of the flip very smoothly.
Automatic upper thread releaser
●Finish sewing it; the thread above by an automatic upper thread releaser
Work later in what melt automatically
I can perform it very smoothly.
Detective device running out of thread
●When the running out of thread of the lower thread and a thread disappear an upper thread,
I automatically stop it.
The tatami mat stand is selectable from three types
●Type A with a music collecting ruler as for the tatami mat stand, type B of the use of long simple melody,
I am available from a C type without the cutting machine.
I cope to thin tatami mat 13mm with an arc needle
●The sewing method uses an arc needle,
By two thread final sewing (ladder sewing),
I can sew it to 13mm - 60mm.
Forwarding adjustment is possible with one dial
●15-45mm (no step adjustment)
I can be equipped with the device in a floor occasion, too (option)
●A note) relationship no table fold music machine in the case of the equipment,
I cannot be equipped with the device in a floor occasion.
Specifications of news cut R-6
| |
Full length
| 2,670mm (9 sun of 8 shakus)
|
Width
| 1,990mm (6 sun of 6 shakus)
|
Height
| 1,340mm (5 sun of 4 shakus)
|
Tatami mat stand height
| 700mm (3 sun of 2 shakus)
|
Weight
| 630 kg (60 kg of relationship no table fold music machines)
|
Motor
| Sewing machine use With 200W slowdown machine brakes (nothing)
|
Sewing machine forwarding use 400W (nothing)
| |
It is for cutting With 200W slowdown machine brakes (nothing)
| |
Rating power consumption
| 500W (three aspects or single phase)
|
Sewing method
| Two thread final sewing (ladder sewing)
|
Sewing interval
| 15-45mm (no step adjustment)
|
Compressor
| More than 400W (option)
|
●: Standard features -: There is no setting
Combination form
| Cutting machine
| Music collecting ruler
| Sewing machine
|
R-6 A
| ●
| ●
| ●
|
R-6 B
| ●
| ―
| ●
|
R-6 C
| ―
| ―
| ●
|
※I may change this way without a notice for improvement.
