Pro ☆1

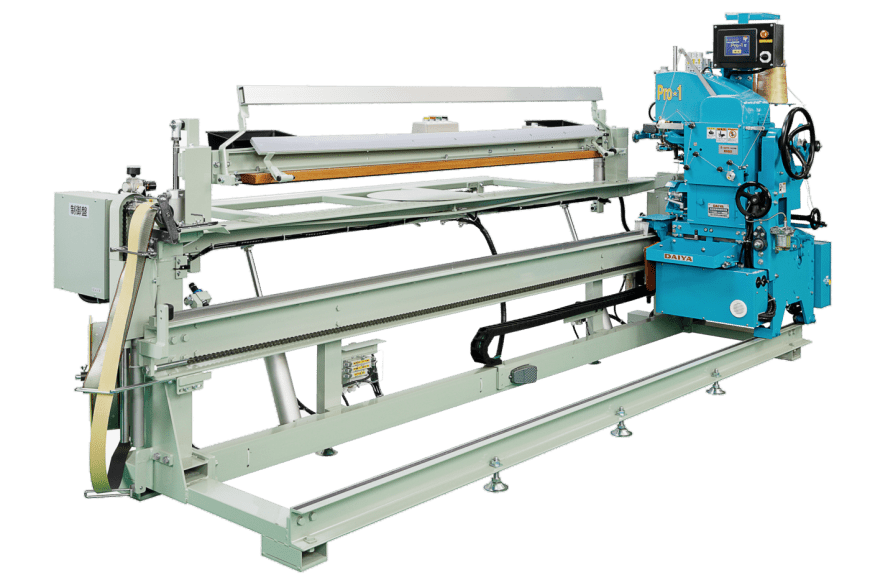

High-speed automatic for two uses machine Pro ☆1
Next-generation for two uses machine ... of ... air drive adoption
●A weight of the backstitch, the lever operation of the reshuffling are completely automated a flat splinter by air drive.
●I realized smooth movement, and the sound became quiet, too.
●I realized smooth movement, and the sound became quiet, too.
■Characteristic
All of movement of the tatami mat stand air
●Without a vibration sound, I realize smooth movement by becoming the air drive.
●I put air by becoming it, and the relationship tension device can easily coordinate condition, too.
●Complicated lever operation becomes needless.
●I can easily regulate the weight condition of the tatami mat, too and can pressurize the uniformity regardless of thickness.
●I put air by becoming it, and the relationship tension device can easily coordinate condition, too.
●Complicated lever operation becomes needless.
●I can easily regulate the weight condition of the tatami mat, too and can pressurize the uniformity regardless of thickness.

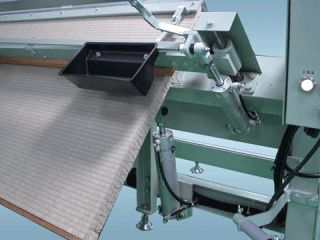

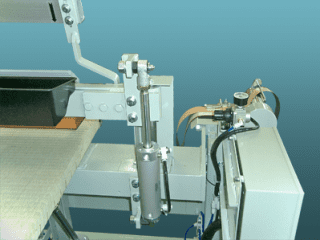

The tatami mat stand which became the air

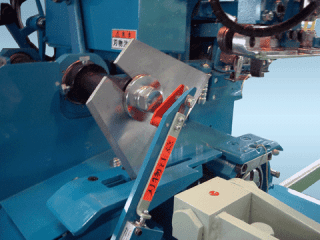

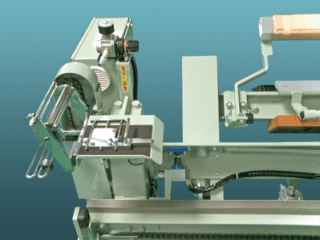

Relationship tension device
Stable tatami mat tightening
The color liquid crystal display panel deployment
●The control panel adopts a color LCD screen. The operation only touches touch panel lightly, and the mode reshuffling touches a screen lightly, too
The simple operation that I only do.
●As an assembly operation, the trouble are displayed by a message screen, I am reliable at the time of emergency. I can easily use anyone.
●As an assembly operation, the trouble are displayed by a message screen, I am reliable at the time of emergency. I can easily use anyone.

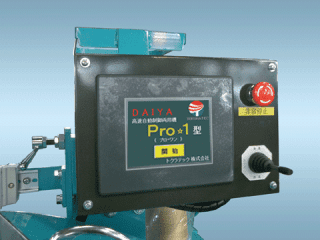

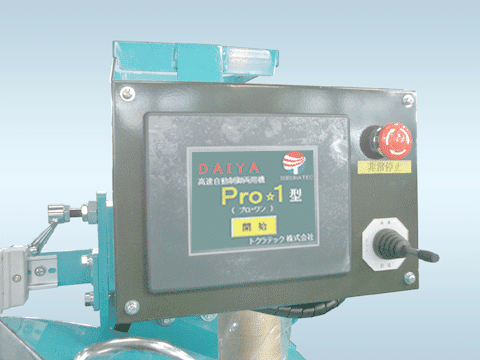

Color liquid crystal display panel
Three kinds of confrontation modes
●I can choose it among plover sewing, ladder sewing, three kinds of the flat stitch.
●I promise the beautiful finish of the rimless tatami. It is effective at the time of the use of tatami mat and crest relationship.
●I promise the beautiful finish of the rimless tatami. It is effective at the time of the use of tatami mat and crest relationship.

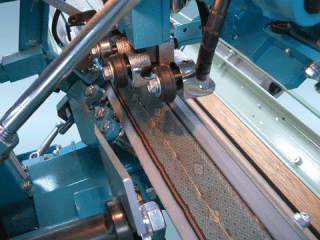

Plover sewing

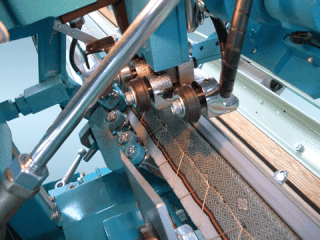

Ladder sewing

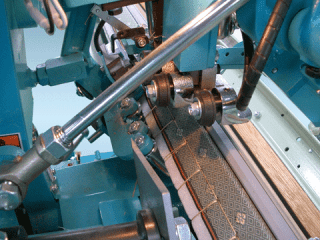

Flat stitch
ke pull double roller
●As I put a line in the relationship lower paper to relationship width, it is easy, and work is finished neatly in a relationship occasion.
Position of the habit collecting steering wheel
●The position of the habit collecting steering wheel rose and work took its ease and became easy to look at the point of a sword.
Automatic top thread, lower thread cut-off
●I automatically cut top thread, a lower thread and, by the adoption of the automatic thread cutting device, go back after sewing it.

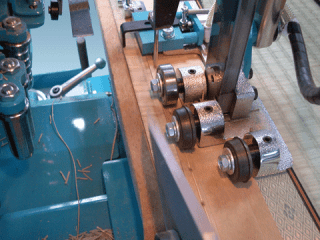

ke pull double roller

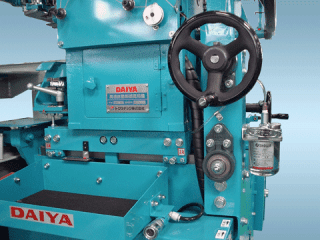

Habit collecting steering wheel

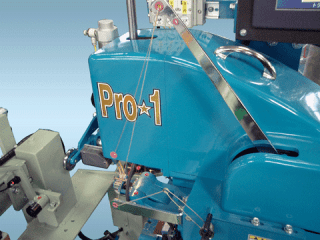

Automatic thread cutting device

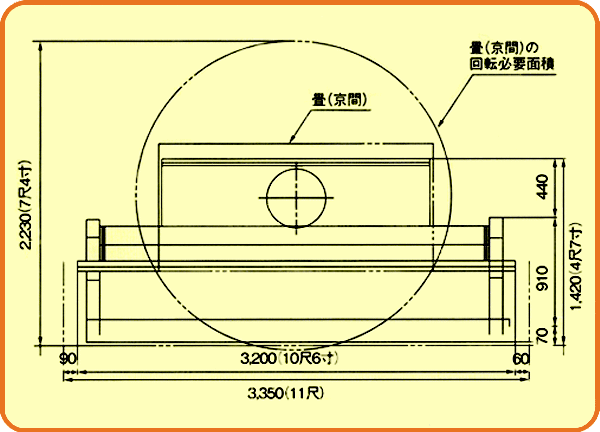

■Fixed ground plan
■Specifications
Full length
| 3,200mm (6 sun of 10 shakus)
| Height
| 1,590mm (3 sun of 5 shakus)
|
Width
| 1,420mm (7 sun of 4 shakus)
| Tatami mat stand height
| 785mm (6 sun of 2 shakus)
|
Weight
| 670 kg
| ||
Motor
Sewing machine use
Forwarding use
It is for cutting
| Single phase 100V
| Three aspect 200V
| |
200W
| 200W
| ||
400W
| 400W
| ||
300W
| 300W
| ||
Rating power consumption
| 1.1KW (three aspects or single phase)
| ||
Sewing method
| Two thread final sewing
| ||
Sewing interval
| Give back flat splinter 0-30mm (no stage); 0-55mm (no stage)
| ||
Compressor
| More than 400W (option)
| ||
